TerraScope: Pixel-Grounded Visual Reasoning for Earth Observation

CVPR 2026

Yan Shu1, Bin Ren1,4, Zhitong Xiong3, Xiao Xiang Zhu3, Begüm Demir2, Nicu Sebe1, Paolo Rota1
1University of Trento, 2BIFOLD and TU Berlin, 3Technical University of Munich, 4MBZUAI
Paper Code Model Benchmark Training Data

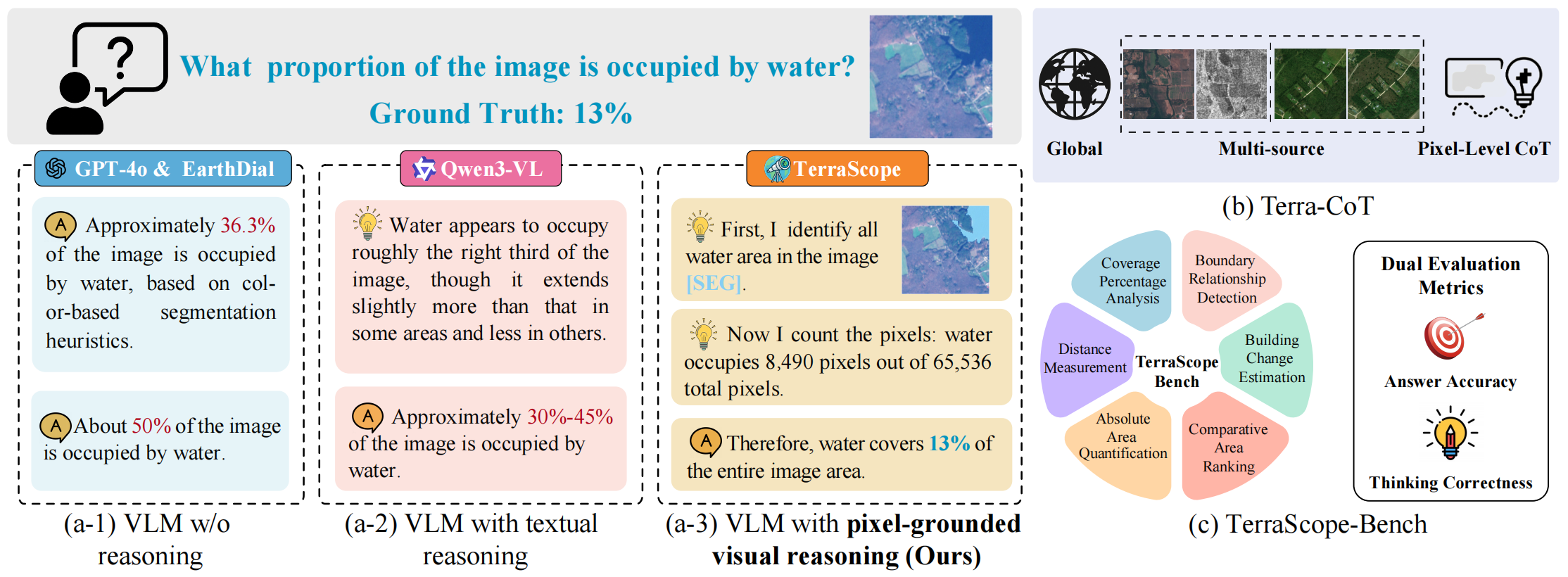

TerraScope Teaser

Figure 1: TerraScope performs pixel-grounded visual reasoning for diverse earth observation tasks.

Abstract

Vision-language models (VLMs) have shown promise in earth observation (EO), yet they struggle with tasks that require grounding complex spatial reasoning in precise pixel-level visual representations. To address this problem, we introduce TerraScope, a unified VLM that delivers pixel-grounded geospatial reasoning with two key capabilities: (1) modality-flexible reasoning: it handles single-modality inputs (optical or SAR) and adaptively fuses different modalities into the reasoning process when both are available; (2) multi-temporal reasoning: it integrates temporal sequences for change analysis across multiple time points. In addition, we curate Terra-CoT, a large-scale dataset containing 1 million samples with pixel-level masks embedded in reasoning chains across multiple sources. We also propose TerraScope-Bench, the first benchmark for pixel-grounded geospatial reasoning with six sub-tasks that evaluates both answer accuracy and mask quality to ensure authentic pixel-grounded reasoning. Experiments show that TerraScope significantly outperforms existing VLMs on pixel-grounded geospatial reasoning while providing interpretable visual evidence.

Method

We propose TerraScope, a unified vision-language framework for pixel-grounded visual reasoning in geospatial understanding. Unlike traditional VLMs that rely on language-only reasoning chains, TerraScope explicitly generates segmentation masks and grounds reasoning in the selected masked visual space.

  • Pixel-Grounded Chain-of-Thought: A cooperative mechanism between dual decoders that interleaves segmentation mask generation with text generation. Upon detecting [SEG] tokens, the mask decoder predicts segmentation masks, from which masked visual tokens are selected and injected back into the reasoning sequence.
  • Dynamic Visual Feature Extraction: Generated masks are aligned to the vision encoder's dynamic patch layout and resized to the token grid. Visual tokens covered >50% by the mask are selected, projected, and fed into the LLM to resume autoregressive generation conditioned on the KV cache.
  • Multi-Modal & Temporal Reasoning: For optical-SAR pairs, a text-guided, token-level modality selection mechanism computes cross-attention relevance scores to adaptively choose features from the more informative modality at each spatial position. For temporal sequences, explicit temporal indicators ("Image: ti") before each [SEG] token enable frame-specific mask decoding.
  • Two-Stage Training: Stage 1 trains on 2M referring expression segmentation pairs for basic grounding; Stage 2 fine-tunes on 1M Terra-CoT samples with a combined language modeling loss and segmentation loss (Dice + pixel-wise cross-entropy).

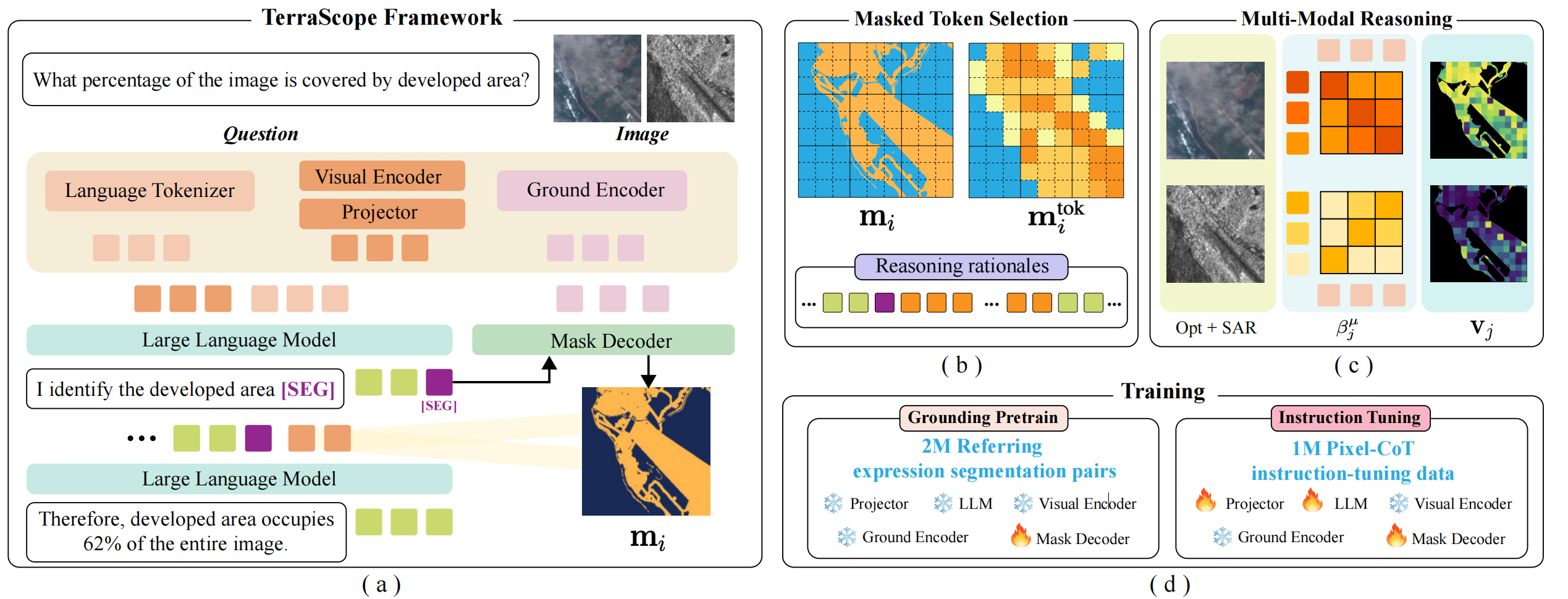

TerraScope Framework Overview

Figure 2: Overview of the TerraScope framework.

Terra-CoT Dataset

Existing EO datasets provide either segmentation labels or VQA pairs, but not both with reasoning traces. We address this with a two-stage automated pipeline to curate large-scale pixel-grounded reasoning data.

  • Grounded Captioning with Chain-of-Thought (Cap-CoT): We prompt a large multimodal model with images where land-cover categories are highlighted using colored masks and labeled accordingly, producing 250K captioning samples with explicit pixel-grounded reasoning traces. An intermediate annotator, TerraScope-Cap, is then trained to scale this to unlabeled imagery.
  • Hierarchical Data Synthesis — Level 1 (Basic Spatial Grounding): Template-based questions for randomly selected categories, covering fundamental spatial tasks such as existence verification, object counting, localization, area quantification, and boundary detection, each paired with pixel-grounded reasoning traces.
  • Hierarchical Data Synthesis — Level 2 (Complex Multi-Step Reasoning): An LLM composes multiple L1 questions into complex reasoning tasks of two types: L2-Spatial (cross-entity relationship inference) and L2-Semantic (domain knowledge beyond visual observation).

This hierarchical process produces 1M Terra-CoT samples with diverse reasoning abilities across optical, SAR, and temporal sources covering global regions.

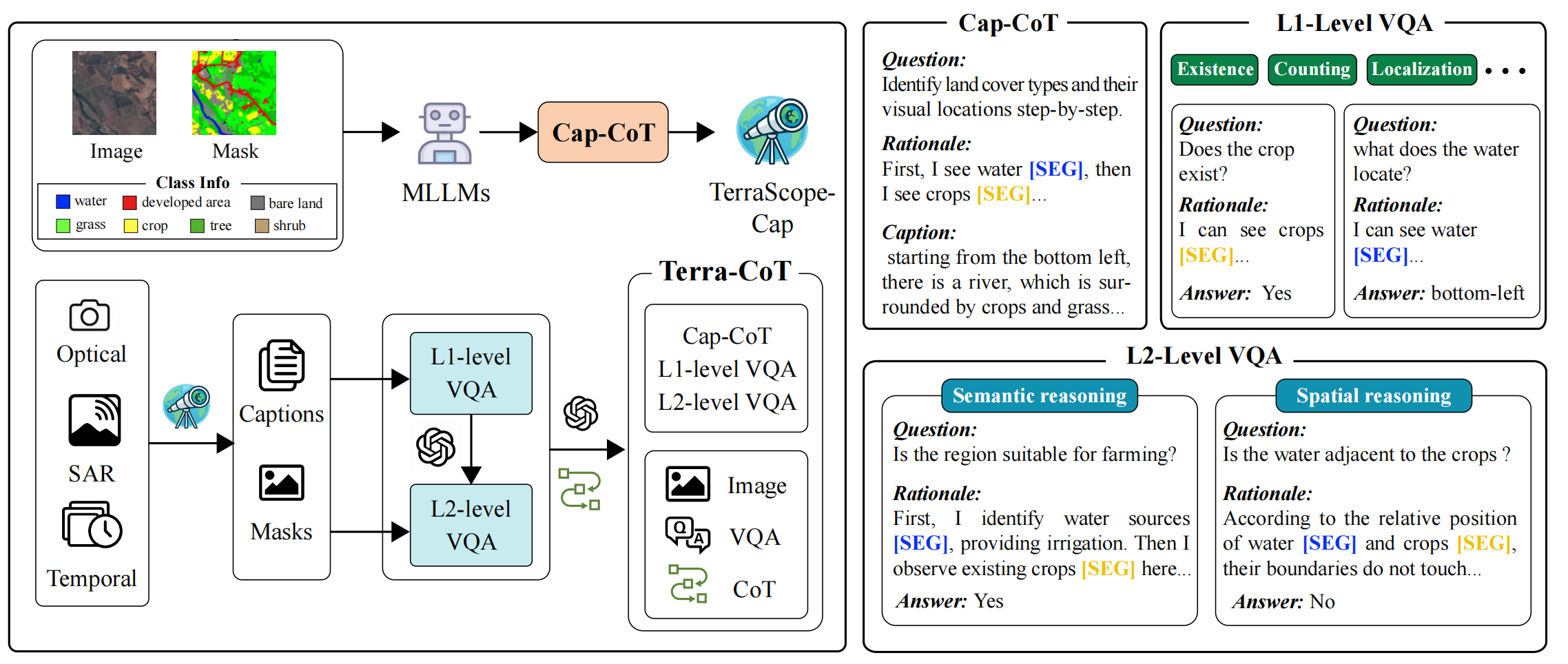

Terra-CoT Dataset Pipeline

Figure 3: Overview of the Terra-CoT data synthesis pipeline.

TerraScope-Bench

Existing EO benchmarks emphasize coarse-grained tasks like scene classification and image captioning, failing to assess fine-grained spatial reasoning. We introduce TerraScope-Bench, a benchmark of 3,837 carefully curated samples from test sets of existing datasets, designed to evaluate pixel-level spatial understanding.

  • Six Task Categories: Coverage Percentage Analysis (855), Absolute Area Quantification (855), Distance Measurement (129), Comparative Area Ranking (855), Boundary Relationship Detection (855), and Building Change Estimation (288).
  • Automated QA Generation: Spatial properties (coverage ratios, absolute areas, inter-object distances, boundary relationships) are computed from segmentation masks to derive ground-truth answers. Questions are generated via templates, rephrased by an LLM with plausible distractors for multiple-choice format, and filtered by human experts.
  • Dual Evaluation: Unlike existing benchmarks that only assess final answer accuracy, TerraScope-Bench evaluates both response correctness and spatial reasoning quality using IoU-based segmentation metrics, verifying whether models attend to the correct regions during reasoning.

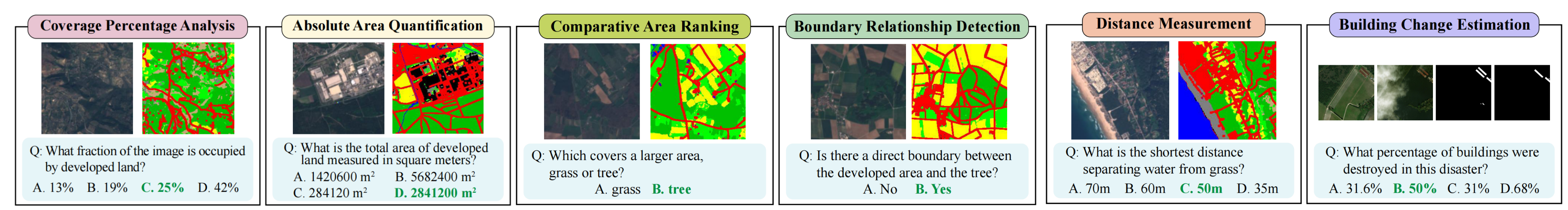

TerraScope-Bench Overview

Figure 4: Overview of TerraScope-Bench task categories and evaluation pipeline.

Experiments

We evaluate TerraScope against general VLMs, EO-specific VLMs, and fine-tuned VLMs across three benchmarks:

  • TerraScope-Bench (optical only): Six fine-grained spatial reasoning tasks — Coverage Analysis, Area Quantification, Comparative Ranking, Boundary Relationship Detection, Distance Measurement, and Building Change Estimation.
  • Landsat30AU: Land-use understanding tasks including Appearance Recognition, Numerical Reasoning, and Spatial Relationship Inference.
  • DisasterM3: Disaster assessment tasks covering Building Damage Classification and Damage Ratio Estimation.

TerraScope (8B) achieves 68.9% average accuracy on TerraScope-Bench, 73.9% on Landsat30AU, and 46.5% on DisasterM3, consistently outperforming all baselines including proprietary models like GPT-4o and reasoning models like GLM-4.1V-Think.

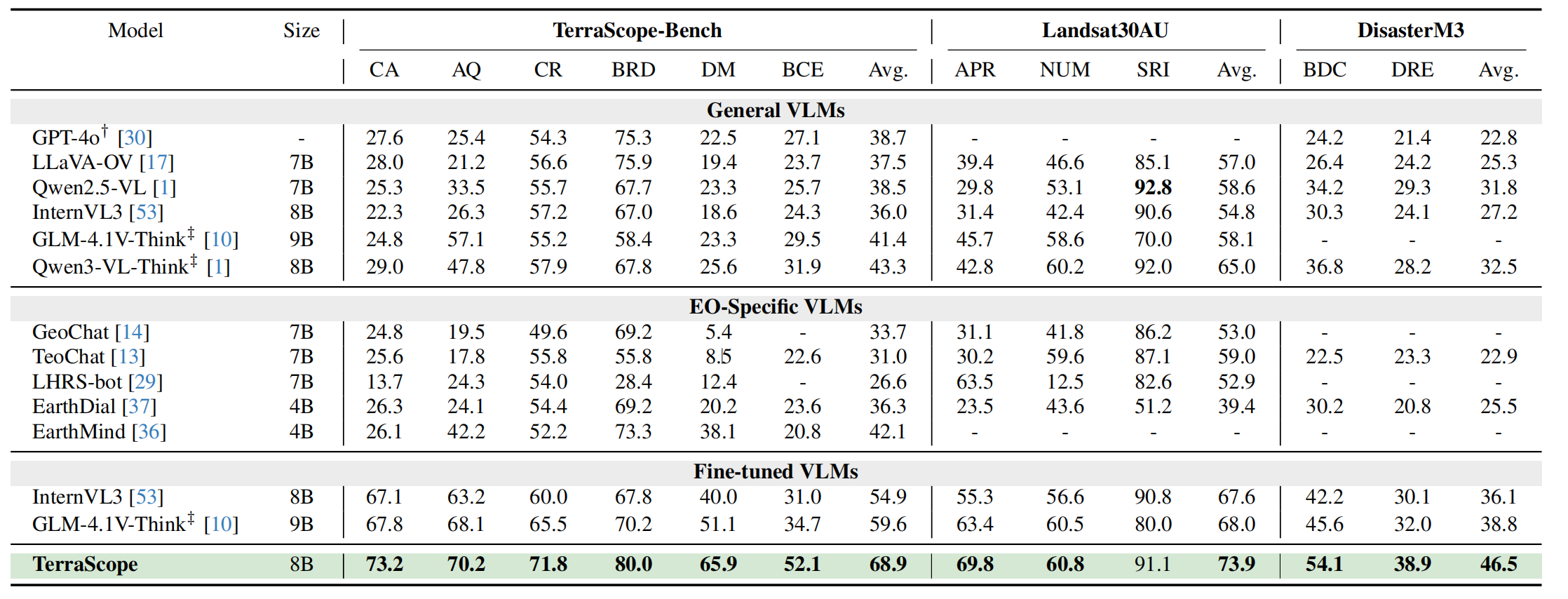

TerraScope Experimental Results

Table 1: Quantitative performance of TerraScope on TerraScope-Bench, Landsat30AU, and DisasterM3.

Citation

@article{shu2026terrascope,
      title={TerraScope: Pixel-Grounded Visual Reasoning for Earth Observation},
      author={Yan Shu and Bin Ren and Zhitong Xiong and Xiaoxiang Zhu and Begüm Demir and Nicu Sebe and Paolo Rota},
      year={2026},
      eprint={},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={},
}
